Tercross™

PTA Dilatation Catheter (OTW)

Description

A workhorse PTA balloon for below-the-knee (BTK) vessels

Tercross is a percutaneous transluminal angioplasty (PTA) balloon dilatation catheter for peripheral indications. Tercross is designed specifically for stenosis dilatation in peripheral arteries, such as the iliac, femoral, popliteal, infra-popliteal and renal arteries, but not in the cephalic, cervical and cardiac arteries.

Characteristics

Great crossability

  • Low balloon crossing profile and hydrophilic coating provide reliable crossability
  • The seamless, OTW (over-the-wire) polymer shaft provides good support and offers impressive pushability, adequate kink resistance and fast deflation times

Extensive pressure working range

  • The balloon can be inflated up to a Rated Burst Pressure (RBP) of 20 atm (2026 kPa), enabling efficient and successful recanalization

Wide range of sizes

  • A wide choice of balloon diameters (Ø 1.25 – 4.0 mm) and lengths (20 – 200 mm) covers all clinical needs

General specifications

Catheter designOver-the-wire
Guidewire compatibility0.014'" (0.36 mm)
Usable shaft length100 cm, 148 cm

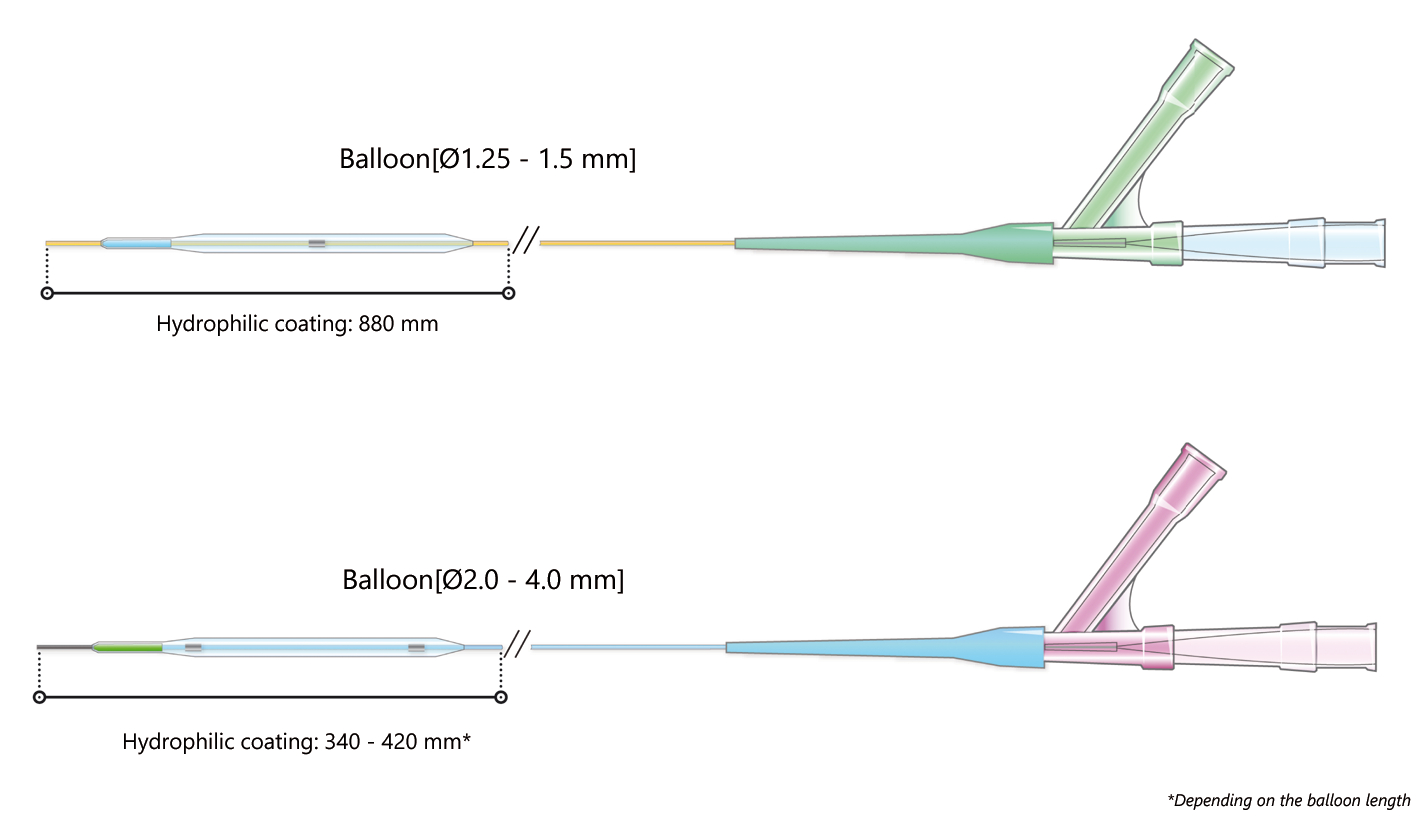

Balloon folding2 folded (Ø 1.25 mm - 1.5 mm)
3 folded (Ø 2.0 mm - 4.0 mm)
CoatingHydrophilic
Proximal shaft diameter3.2 Fr (1.07 mm) for Ø 1.25 mm - 1.5 mm
3.6 Fr (1.21 mm) for Ø 2.0 mm - 4.0 mm
Distal shaft diameter2.5 Fr (0.83 mm) for Ø 1.25 mm - 1.5 mm
3.0 Fr (1.00 mm) for Ø 2.0 mm - 4.0 mm:

Item specifications

​Shaft length: 100 cm

Balloon
diameter
(mm) ​		Balloon length (mm)
204080120150200
1.25BD-T1220P4E—————
1.50BD-T1520P4E—————
2.00—BD-T2040P4EBD-T2080P4EBD-T20120P4EBD-T20150P4EBD-T20200P4E
2.50—BD-T2540P4EBD-T2580P4EBD-T25120P4EBD-T25150P4EBD-T25200P4E
3.00—BD-T3040P4EBD-T3080P4EBD-T30120P4EBD-T30150P4EBD-T30200P4E
3.50—BD-T3540P4EBD-T3580P4EBD-T35120P4EBD-T35150P4EBD-T35200P4E
4.00—BD-T4040P4EBD-T4080P4EBD-T40120P4EBD-T40150P4EBD-T40200P4E
Enlarge table

Shaft length: 148 cm

Balloon
diameter
(mm) ​		Balloon length (mm)
204080120150200
1.25BD-T1220Q4E—————
1.50BD-T1520Q4E—————
2.00—BD-T2040Q4EBD-T2080Q4EBD-T20120Q4EBD-T20150Q4EBD-T20200Q4E
2.50—BD-T2540Q4EBD-T2580Q4EBD-T25120Q4EBD-T25150Q4EBD-T25200Q4E
3.00—BD-T3040Q4EBD-T3080Q4EBD-T30120Q4EBD-T30150Q4EBD-T30200Q4E
3.50—BD-T3540Q4EBD-T3580Q4EBD-T35120Q4EBD-T35150Q4EBD-T35200Q4E
4.00—BD-T4040Q4EBD-T4080Q4EBD-T40120Q4EBD-T40150Q4EBD-T40200Q4E
Enlarge table

Please quote above item reference codes when placing an order.
