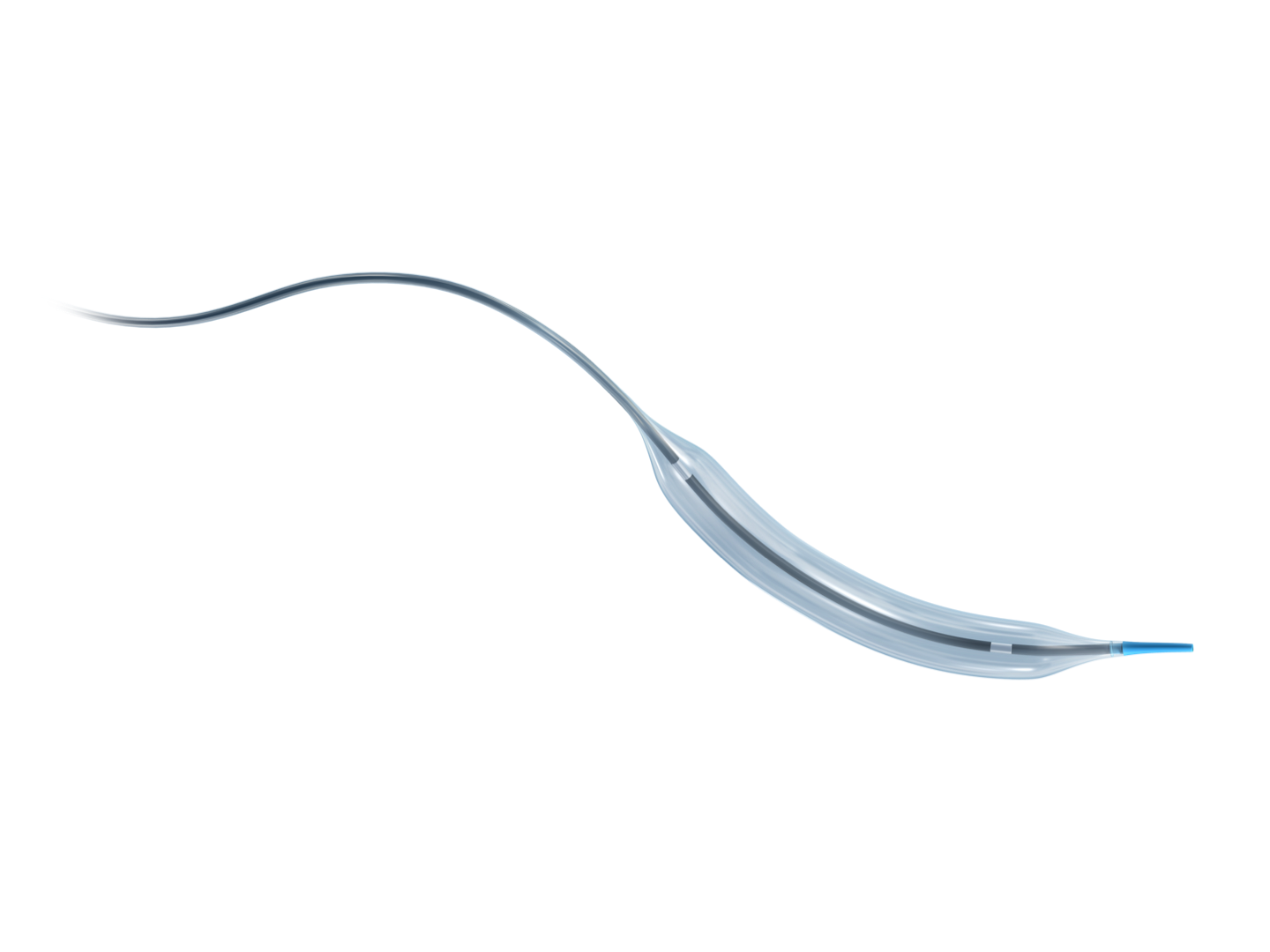

Ryujin™ Plus OTW

PTCA Dilatation Catheter

Description

Ryujin Plus OTW is intended for use during percutaneous transluminal coronary angioplasty (PTCA) for the purpose of improving myocardial blood flow in the localized stenotic lesion of the coronary arteries.

Ryujin Plus OTW is a PTCA balloon dilatation catheter with a coaxial system utilizing innovative Ryujin technologies.

Long shaft model (usable catheter length: 148 cm) makes it possible to reach very distal lesions.

Characteristics

148 cm-long shaft model is suitable for CART technique (Controlled Antegrade and Retrograde subintimal Tracking)
Stiff plastic shaft designed towards excellent kink resistance
Inner shaft material designed towards smooth guidewire handling
Durable hydrophilic coating

General specifications

Shaft diameter	3.2 Fr (1.07 mm) Proximal 2.5 Fr (0.83 mm) Distal for 1.25 mm, 1.50 mm and 2.00 mm 2.7 Fr (0.90 mm) Distal for 2.50 mm
Usable length	135 cm / 148 cm
Nominal pressure	6 atm (608 kPa)
Rated burst pressure	14 atm (1419 kPa)
Guidewire compatibility	Maximum diameter 0.014" (0.36 mm)
Entry profile	0.43 mm
Coating	Hydrophilic

Enlarge table

Item specifications

Catheter length	Balloon diameter (mm)	Balloon length (mm)
Catheter length	Balloon diameter (mm)	10	15	20
Normal shaft (135 cm)	1.25	DC-PH1210PH	—	—
	1.50	—	DC-PH1515PH	—
	2.00	—	—	DC-PH2020PHW
	2.50	—	—	DC-PH2520PHW
	3.00	—	—	DC-PH3020PHW
	3.50	—	—	DC-PH3520PHW
Long shaft (148 cm)	1.25	DC-PH1210LH	—	DC-PH1220LH
	2.00	—	—	DC-PH2020LHW
	2.50	—	—	DC-PH2520LHW

Enlarge table

* Single Radiopaque marker
Please quote above item reference codes when placing an order.
