Radifocus™ Glidecath™

Angiographic Catheter

Description

Radifocus Glidecath is a hydrophilic angiographic catheter intended for use in angiographic procedures in peripheral and neural vasculature. It delivers radiopaque media and therapeutic agents to selected sites in the vascular system. Glidecath is also used to lead a guidewire or a catheter into the target site.

Glidecath features the same hydrophilic coating as Terumo Guidewire M, which allows to reach the most distal points in the most tortuous anatomies. It is also indicated to deliver embolic material such as microspheres, PVA particles and macro coils.

Characteristics

  • Distal hydrophilic coating at 15, 25, and 40 cm, depending on catheter type and length, providing smooth navigability and allowing to selectively catheterize the most tortuous anatomies

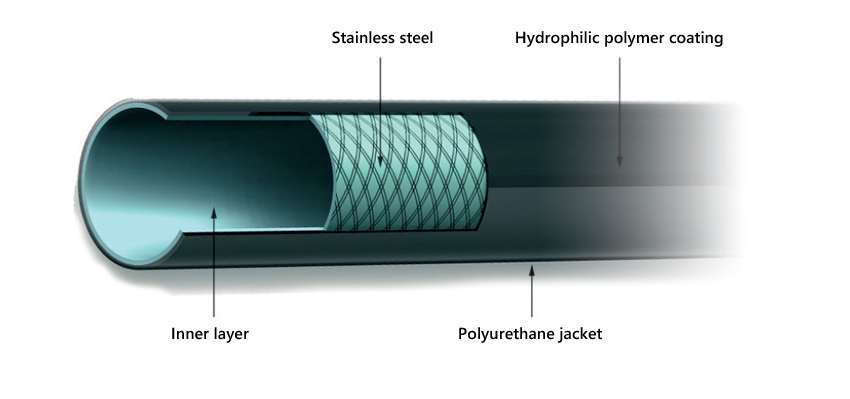

  • Great braiding structure: the single braiding on the 5 Fr option and double braiding on the 4 Fr provide high trackability, especially when used in combination with Terumo's hydrophilic guidewires
  • Smooth, radiopaque surface prevents thrombus formation and ensures high visibility under fluoroscopy
  • A large lumen for a low profile: Glidecath 4 Fr (1.40 mm) is compatible with 0.038" (0.97 mm) guidewires and can be used as guiding catheter for microcatheters such as the Terumo Progreat
  • Resistant to high pressure: 750 psi (5.171 kPa) for the 4 Fr catheter and 1000 psi (6.895 kPa) for the 5 Fr
  • Special curves and lengths are available, including a straight, 150 cm option for lower limb recanalization and a Yashiro 3D shape for easy celiac trunk access

General specifications

Available diameters4 Fr and 5 Fr
Radiopaque jacketPolyurethane
Hydrophilic coating"M" polymer
Inner surfaceNylon – rich
Inner diameter0.041" (1.03 mm) for 4 Fr
0.043" (1.10 mm) for 5 Fr
Lengths (cm)65, 80, 100, 110, 120, 150
Guidewire compatibility0.038" (0.97 mm)
Units per box5

Item specifications

Visceral Shape ​

Outer diameterLengthDistal hydrophilic lengthDistal curveSide holesItem reference
​4 Fr / 1.40 mm​65 cm​15 cm

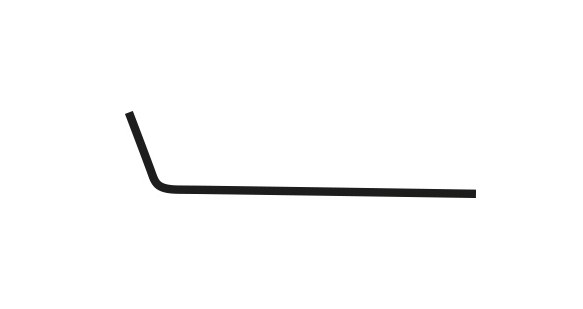

Non-Tapered angled

​0​RF-ZV9410GM
​​4 Fr / 1.40 mm
​65 cm​​15 cm
 Non-Tapered angled
​2
​​RF-ZV1410GM *
​​4 Fr / 1.40 mm
​65 cm
​15 cm

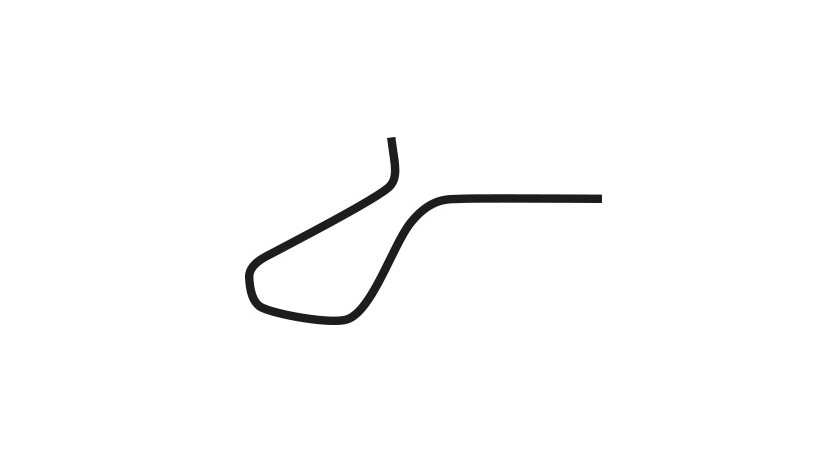

 ​Mikaelsson (B)
​2
​RF-ZFC410GM *
​4 Fr / 1.40 mm​65 cm​15 cm
 ​Non-Tapered angled
type 90

​2​RF-ZVZ410GM *
​4 Fr / 1.40 mm​65 cm​15 cm
 Straight
​0​RF-ZM7410GM
​4 Fr / 1.40 mm​65 cm​15 cm

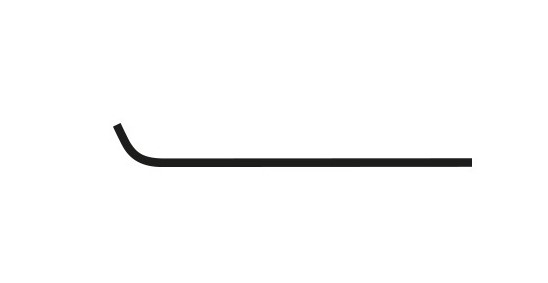

 Multipurpose
​0​RF-ZW3410GM *
​​4 Fr / 1.40 mm
​65 cm
​15 cm

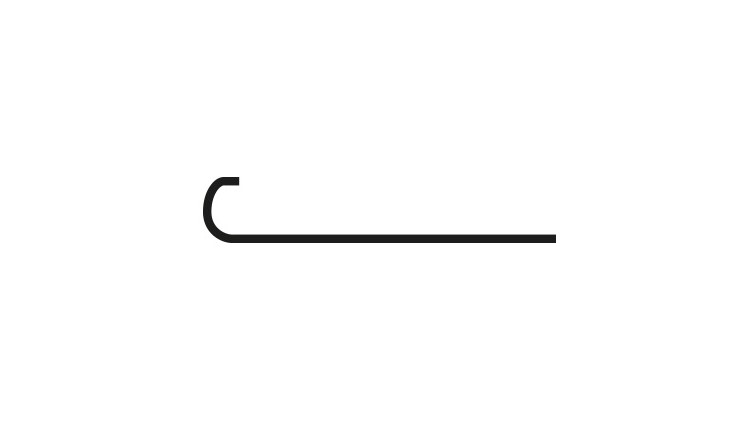

 ​J curve Large
​​0
​​RF-ZD4410GM
​4 Fr / 1.40 mm
​65 cm
​15 cm
 ​Cobra 1 Small
​0
​RF-ZB4410GM
​​4 Fr / 1.40 mm
​80 cm
​​15 cm
 ​Cobra 1 Small
​0
​RF-ZB44108M
​4 Fr / 1.40 mm​65 cm​15 cm
 Cobra 2 Middle
​0​RF-ZB5410GM
​​4 Fr / 1.40 mm
​80 cm
​​15 cm
 Cobra 2 Middle
​0
​RF-ZB54108M
​​4 Fr / 1.40 mm
​100 cm
​​15 cm
 Cobra 2 Middle
​0
​RF-ZB54110M
​​4 Fr / 1.40 mm
​100 cm
​​15 cm
 Cobra 2 Middle
​2
​​RF-ZBV4110M *
​4 Fr / 1.40 mm
​65 cm​15 cm
 Cobra 3 Large
​0​RF-ZB6410GM
​4 Fr / 1.40 mm
80 cm
15 cm
 Cobra 3 Large
2
​RF-ZB34108M *
​​4 Fr / 1.40 mm
​80 cm
​15 cm
 Cobra 3 Large
​RF-ZB64108M​
​​4 Fr / 1.40 mm
​70 cm
​45 cm

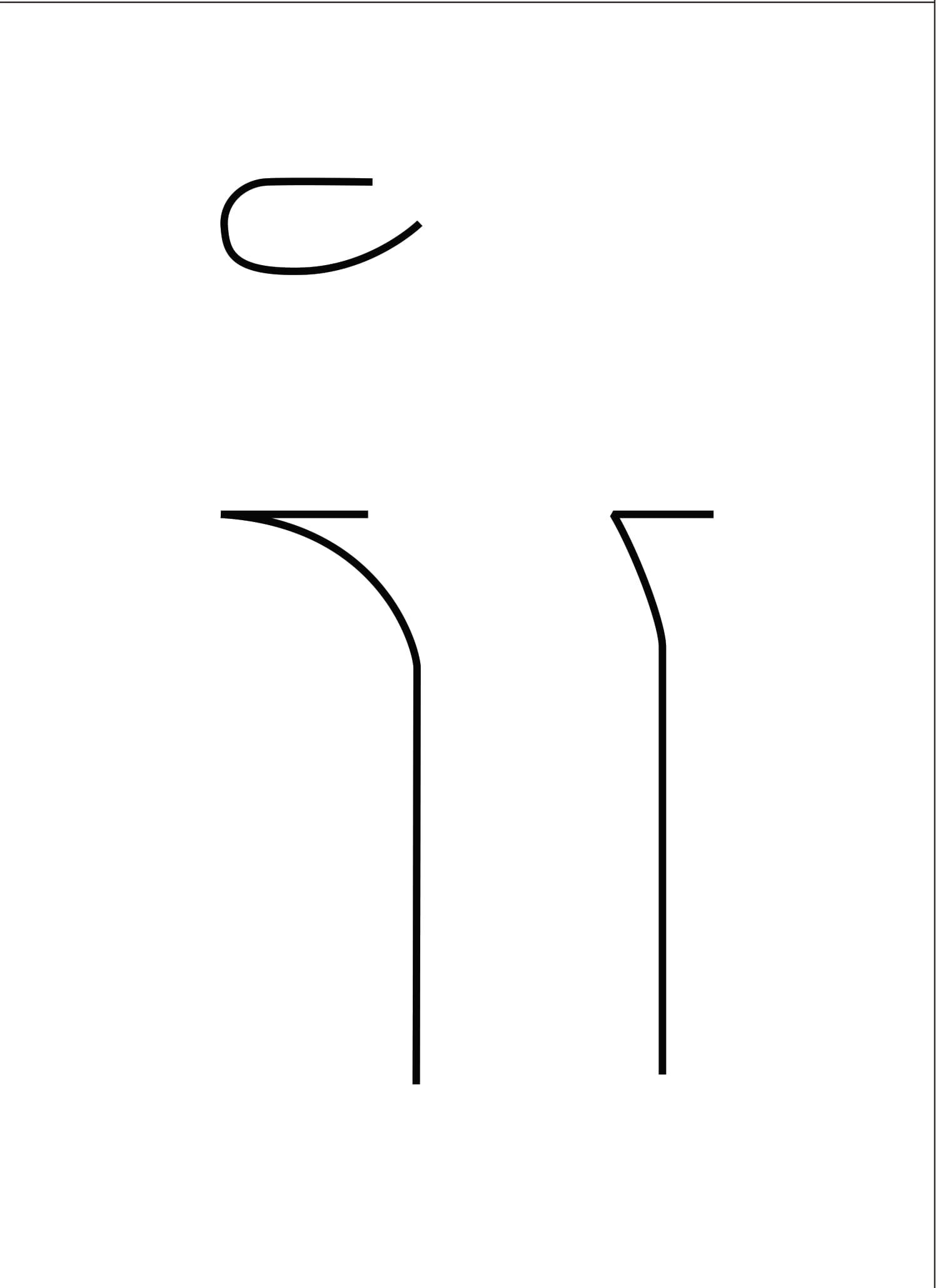

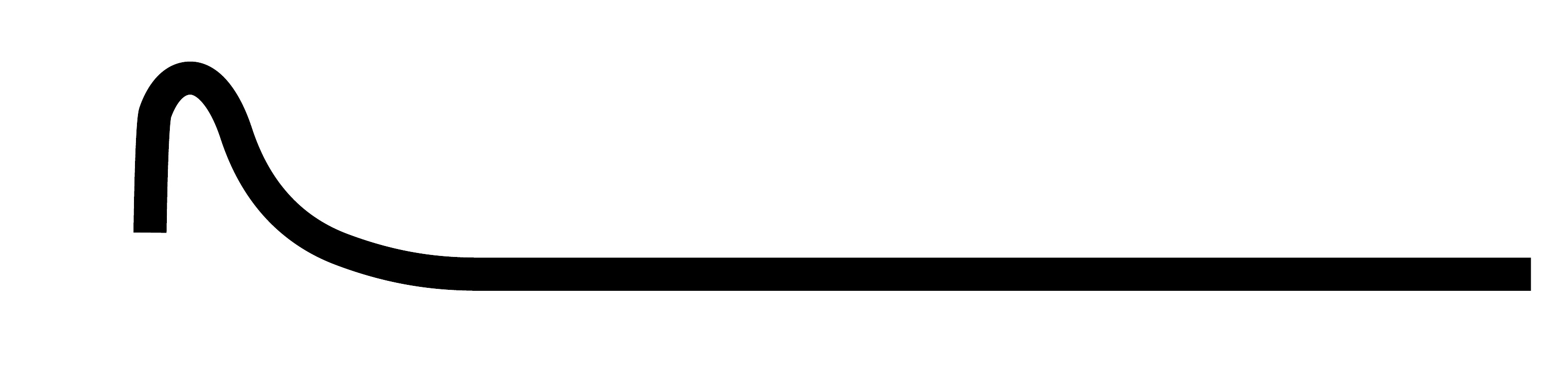

 Yashiro
​0
​RF*ZG94107KM *, **
​​4 Fr / 1.40 mm
​80 cm
​15 cm
 ​J Curve Long tip ​4
RF-ZDJ4108M *
​​4 Fr / 1.40 mm
​80 cm
​15 cm
 ​COE 1
​5
RF-ZWC4108M *
​​4 Fr / 1.40 mm
​80 cm
​15 cm
​​COE 2
​6
RF-ZWD4108M
​4 Fr / 1.40 mm
​100 cm
​15 cm

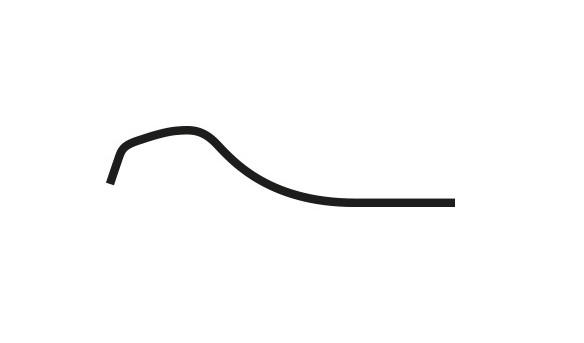

 ​Hinck Headhunter 1
​0
​RF-WB14110M
​​4 Fr / 1.40 mm
100 cm​​15 cm
 ​Non-Tapered angled
​0
​RF-ZV94110M

​​4 Fr / 1.40 mm
​100 cm
​15 cm
 ​Simmons/Sidewinder 1
​0
​RF-WA14110M

​​4 Fr / 1.40 mm
​70 cm
​​15 cm
 ​Simmons/Sidewinder 1
​0
​RF-WA14107M *
​4 Fr / 1.40 mm
​100 cm
​15 cm
 ​Simmons/Sidewinder 2
​0
RF-WA24110M
​4 Fr / 1.40 mm
​100 cm
​15 cm
 Simmons/Sidewinder 3
​0
​​RF*WA34110M * ​
​4 Fr / 1.40 mm
​100 cm
​15 cm
 ​Non-Tapered angled
​2
​RF-ZV14110M *
​​4 Fr / 1.40 mm
​110 cm
​15 cm

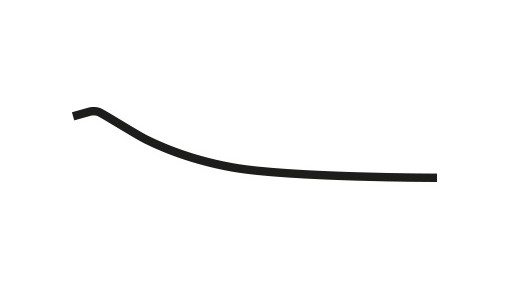

 ​Bentson-Hanafee-Wilson Modified
​0
RF*WEA4111M ​
​​4 Fr / 1.40 mm
​110 cm
​15 cm
 Non-Tapered angled
​0
​RF*ZV94111M
​​4 Fr / 1.40 mm
​150 cm
​40 cm
 Non-Tapered angled
​0
​RF*ZV94115JM

​4 Fr / 1.40 mm
100 cm​​15 cm
 ​Multipurpose
​0
​RF-ZW34110M
​​4 Fr / 1.40 mm
​120 cm
​15 cm
 ​Straight​
0​
​RF*ZM74112M
​​4 Fr / 1.40 mm
​150 cm
​40 cm
 ​Straight
​0
​RF*ZM74115JM
​​​4 Fr / 1.40 mm
​80 cm
​15 cm
 ​Straight
​0
​RF-ZM74108M
​​​4 Fr / 1.40 mm
100 cm​​15 cm
 ​Straight
​0
​RF-ZM74110M
​​​4 Fr / 1.40 mm
​110 cm
​15 cm
 ​Straight
​0
​RF*ZM74111M
​​​​4 Fr / 1.40 mm
​120 cm
​15 cm
 ​​Vertebral
0​
​​RF*WH14112M
​​​​4 Fr / 1.40 mm
​​125 cm
​15 cm​
​R.A.V.I. MG1​
​0
​RF*ZRV411CM
​​​​4 Fr / 1.40 mm
​135 cm
​40 cm
​R.A.V.I. MG2
​0
​RF*ZUF411DJM
​​​​4 Fr / 1.40 mm​
​150 cm
​​40 cm​
​​R.A.V.I. MG2​
​0
​RF*ZUF4115JM
​5 Fr / 1.70 mm
​65 cm
​25 cm

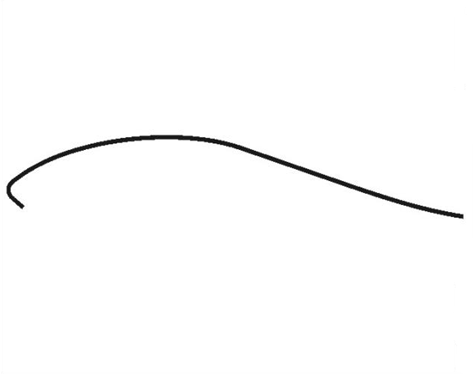

 ​Internal Mammary
Short Tip

​0
​RF-XIR510GM *
​5 Fr / 1.70 mm
​65 cm
​25 cm

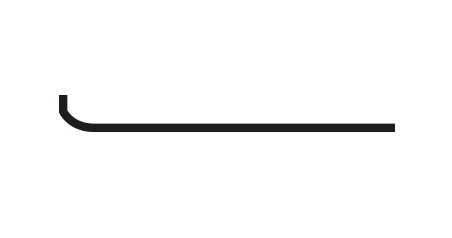

 ​Non-Tapered Angled
Type T90

​0
​RF-XVZ510GM
​5 Fr / 1.70 mm
​65 cm
​25 cm
 ​Straight Tapered
​0
​RF*XI7510GM
​5 Fr / 1.70 mm
​65 cm
​25 cm

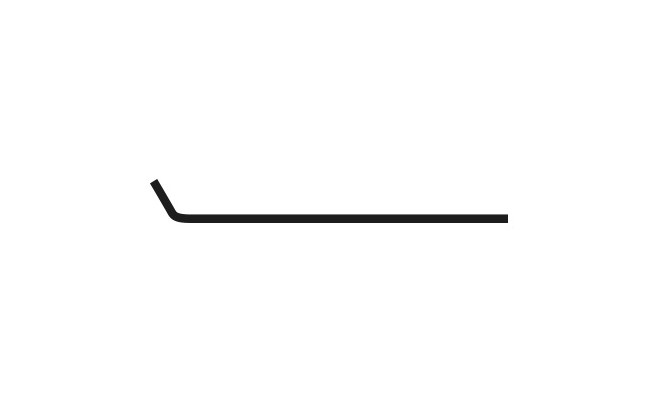

 ​Angled Tapered
​0
​RF*XL9510GM
​5 Fr / 1.70 mm
​70 cm
25 cm
 Yashiro
​0
​RF*XG95107M *, **
​5 Fr / 1.70 mm
​80 cm
​40 cm
 ​Straight Tapered
​0
​RF*XI75108M
​5 Fr / 1.70 mm
​80 cm
​40 cm
 ​​Simmons/Sidewinder 1
​0
​RF-YA15108M *
​​5 Fr / 1.70 mm
​100 cm
​​40 cm
​​​​Simmons/Sidewinder 1
​​0
​​RF-YA15110M
​5 Fr / 1.70 mm
​80 cm
​40 cm
 Simmons/Sidewinder 2
​0
​RF-YA25108M *
​​5 Fr / 1.70 mm
100 cm​​40 cm
 Simmons/Sidewinder 2
​0
​RF-YA25110M​
​​​5 Fr / 1.70 mm
​​100 cm
​​40 cm
 ​Simmons/Sidewinder 3
​0
​RF*YA35110M *
​5 Fr / 1.70 mm
​80 cm
​40 cm
​COE 1
​6
​RF-XWC5108M *
​​5 Fr / 1.70 mm
​90 cm
​40 cm

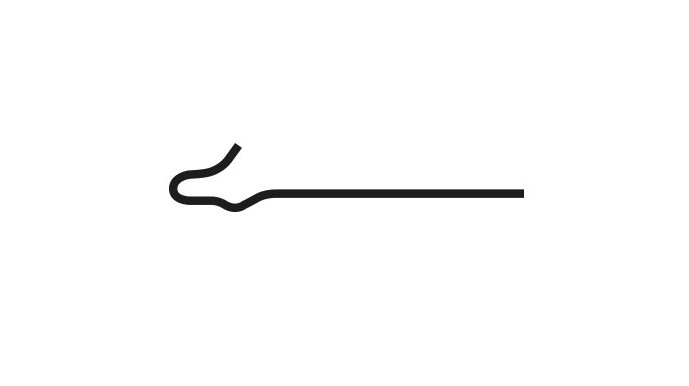

 Mikaelsson
​4
​RF-XFB5109M *
​5 Fr / 1.70 mm
100 cm​​40 cm
 ​Angled Tapered
​0
​RF*XL95110M

​​5 Fr / 1.70 mm
​100 cm
​40 cm
 ​​Straight Tapered
​0
​RF*XI75110M

​​5 Fr / 1.70 mm
​100 cm
​40 cm
 Yashiro
​0
​RF*XG95110M *, **
​​5 Fr / 1.70 mm
​100 cm
​40 cm
 ​Hinck Headhunter 1
​0
​RF-YB15110M

5 Fr / 1.70 mm

65 cm

25 cm

 ​Cobra 1 Small
0RF-XB4510GM

5 Fr / 1.70 mm

80 cm

40 cm

 ​​Cobra 1 Small
0RF-XB45108M

5 Fr / 1.70 mm

80 cm

40 cm

 ​Cobra 1 Small
2RF-XB15108M
​​5 Fr / 1.70 mm
​80 cm
​40 cm
 Cobra 2 Middle
​0
​RF-XB55108M

5 Fr / 1.70 mm

65 cm

25 cm

 Cobra 2 Middle
0RF-XB5510GM
​5 Fr / 1.70 mm
​100 cm
​40 cm
 Cobra 2 Middle
​0
​RF-XB55110M

5 Fr / 1.70 mm

65 cm

25 cm

 Cobra 3 Large
0RF-XB6510GM

5 Fr / 1.70 mm

80 cm

40 cm

 Cobra 3 Large
0RF-XB65108M

5 Fr / 1.70 mm

65 cm

25 cm

 J curve Large
0RF-XD4510GM
​​5 Fr / 1.70 mm
​​​100 cm
​40 cm
 Multipurpose
0
RF-XW35110M​
a
​​5 Fr / 1.70 mm
​110 cm
​40 cm
 Straight
​0
​RF*XM75111M

5 Fr / 1.70 mm

40 cm

25 cm

 Straight
0RF-XM75104M
Enlarge table



Cerebral Shape

Outer diameterLengthDistal hydrophilic lengthDistal curveSide holesItem reference
​4 Fr / 1.40 mm
​​​80 cm
​​​15 cm
​Vertebral
​​​0
​​RF-WH14108M *

4 Fr / 1.40 mm

100 cm

15 cm

 Bentson-Hanafee-Wilson 1
0RF-WE14110M

4 Fr / 1.40 mm

100 cm

15 cm

 Bentson-Hanafee-Wilson 2
0RF-WE24110M

4 Fr / 1.40 mm

100 cm

15 cm

 MANI
0RF-WG14110M

4 Fr / 1.40 mm

100 cm

15 cm

 ​Vertebral
0RF-WH14110M
​​​5 Fr / 1.70 mm​
​110 cm
​40 cm
 ​Non-Tapered Angled
​0
​RF*XV95111M
​​​​5 Fr / 1.70 mm​
​100 cm
​40 cm

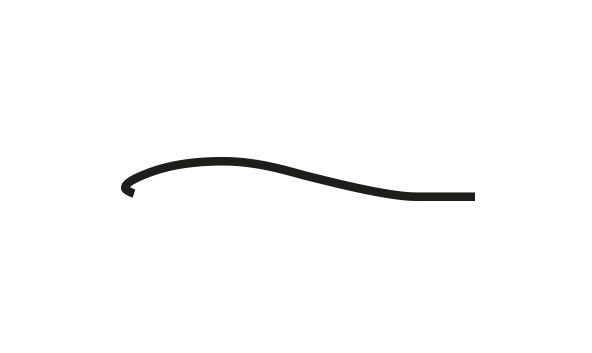

 Internal Mammary
​0
​RF-XIR5110M
​5 Fr / 1.70 mm
​​100 cm
​40 cm
 Bentson-Hanafee-Wilson 1
​0
​​​RF-YE15110M​
​​5 Fr / 1.70 mm​
​100 cm
​40 cm
 ​Bentson-Hanafee-Wilson 2
​0
RF-YE25110M
​​​​5 Fr / 1.70 mm
​​​100 cm
​40 cm
 MANI
​0
​RF-YG15110M *
​​5 Fr / 1.70 mm
​100 cm
​40 cm
 ​Vertebral
​0
RF-YH15110M
​​​​​5 Fr / 1.70 mm
​​​110 cm
​40 cm
​​Vertebral​
​​0
​​RF*YH15111M
Enlarge table

Please quote above item reference codes when placing an order.
Other code numbers are available on special demand. For any further information, please contact your local Terumo representative.

* This item may have additional lead time. Please contact your Terumo representative for more information.
** Units per box: 3 pcs - Due to the shape of the catheter.
