Finecross™ MG

Coronary Micro-Guide Cathether

Description

Designed for success in complex procedures

FineCross^TM MG microcatheter integrates crossability and guidewire support to treat challenging cases, involving tortuous vessels, CTO, bifurcations, highly stenosed and calcified lesions.

Characteristics

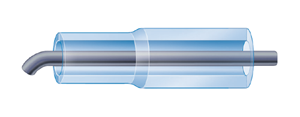

Conventional microcatheter

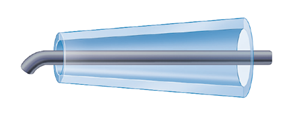

Finecross® MG
Tapers from 2.6 Fr to 1.8 Fr over entire catheter length

Crossability

Hydrophilic coating and flexible distal segment to enable advancement and access through distal tortuous vessels.
Tapered inner and outer diameters, from 2.6Fr to 1.8 Fr over the entire length.

Guidewire support

Fully stainless-steel braided shaft for responsiveness, lumen integrity, and pushability
PTFE inner layer for guidewire handling to facilitate exchange wire during complex procedures.

Preparation

Video instructions

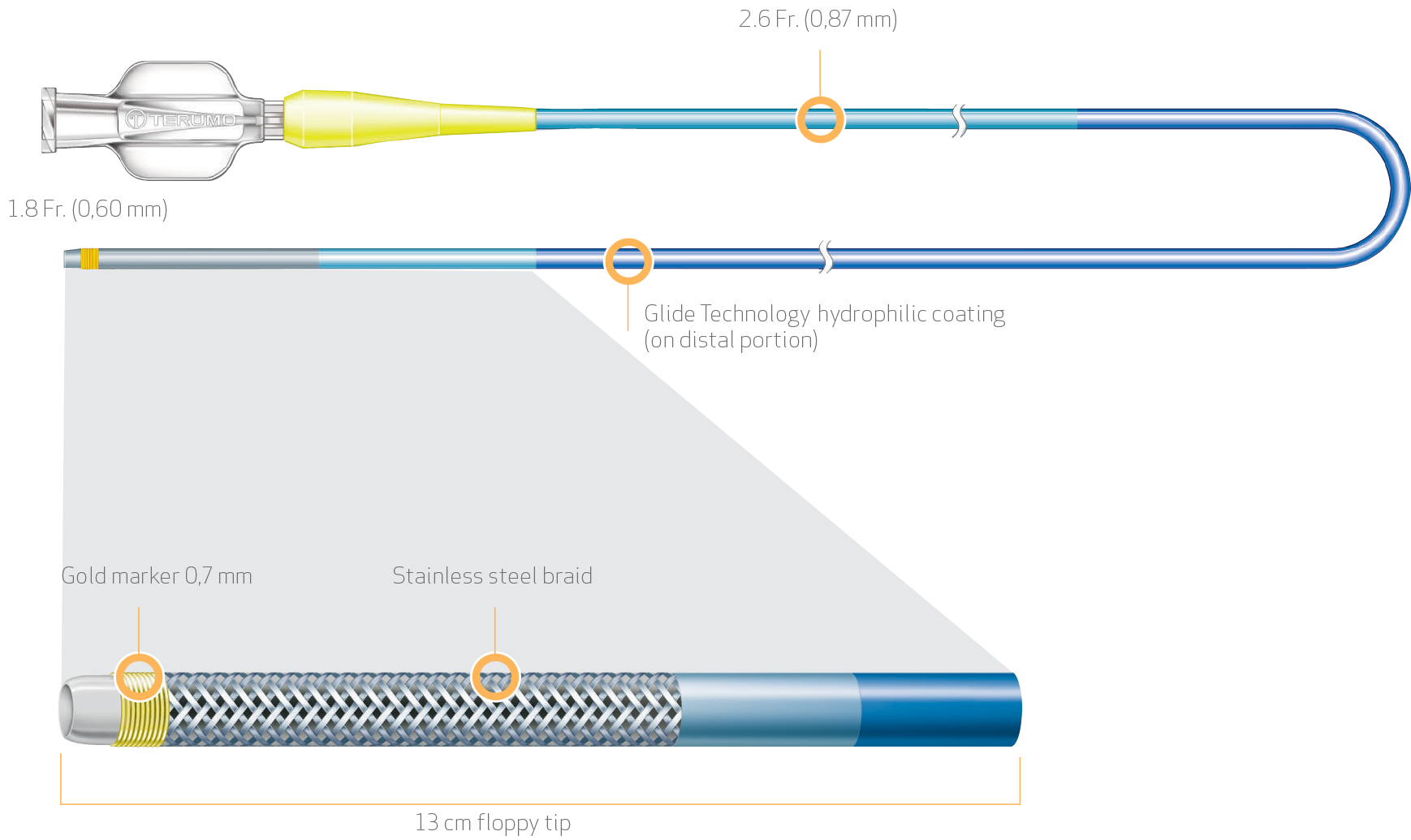

General specifications

Shaft coating	Hydrophilic coating
Braiding	Stainless steel - SUS
Inner layer	Polytetrafluoroethylene - PTFE
Radiopaque marker	0.7 mm gold marker located at 0.6 mm from the tip
Usable length	130 or 150 cm

Enlarge table

Item specifications

Item reference	Catheter length	Distal outer diameter	Proximal outer diameter	Distal inner diameter	Proximal inner diameter	Guidewire compatibility
NC-F863A	130 cm	1.8 Fr / 0.60 mm	2.6 Fr / 0.87 mm	0.018" / 0.45 mm	0.021" / 0.55 mm	Maximum diameter 0.014" / 0.36 mm
NC-F865A	150 cm	1.8 Fr / 0.60 mm	2.6 Fr / 0.87 mm	0.018" / 0.45 mm	0.021" / 0.55 mm	Maximum diameter 0.014" / 0.36 mm

Enlarge table

Please quote above item reference codes when placing an order.
