Eliminate™

Aspiration Catheter

Description

A fast and simple solution for effective thrombus aspiration

Eliminate is an innovative aspiration catheter designed to offer a balance between crossing performance, kink resistance and thrombus-aspiration capability.

Characteristics

Dedicated tip design with radiopaque marker

Excellent crossability¹ while providing atraumatic and effective aspiration
Ensures reliable fluoroscopic visibility

Braided shaft with hydrophilic coating and pre-loaded stiffening stylet²

Excellent pushability and kink resistance¹
Easy navigation through tortuous anatomies

Large aspiration lumen

Constant, high-performance aspiration throughout the procedure
Choice of three sizes (6 Fr, 7 Fr and 8 Fr guide catheter compatibility) for different coronary and peripheral applications

Guide Catheter Compatibility

Product Details

General specifications

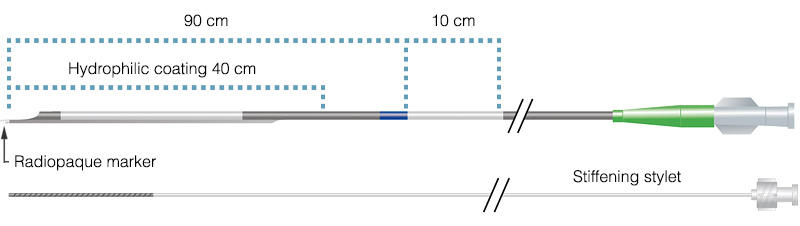

Usable length	140 cm
Distal tip hole length	4 mm for 6 and 7 Fr, 7 mm for 8 Fr
Rapid exchange segment	23 cm
Radiopaque marker	1 mm located at 4 mm from the tip
Positioning marker	10 cm = single white mark located at 90 cm from distal tip
Guidewire compatibility	Maximum diameter 0.014" (0.36 mm)
Coating	Hydrophilic

Enlarge table

Item specifications

Guide catheter compatibility		Guide sheath compatibility	Item reference
6 Fr	I.D. ≥ 0.070" / 1.78 mm	—	EG1602
7 Fr	I.D. ≥ 0.080" / 2.03 mm	—	EG1652
8 Fr	I.D. ≥ 0.086" / 2.18 mm	6 Fr	EG1401

Enlarge table

Please quote above item reference codes when placing an order.

References

¹ Onuma et al.; Eur Heart J. 2013 Apr;34(14):1050-60. doi: 10.1093/eurheartj/ehs456. Epub 2013 Feb 8.
² Only the 6 Fr and 7 Fr options are pre-loaded.
